Promote NTN 4T-30216
-
Optional specifications
- LINA: 30216U

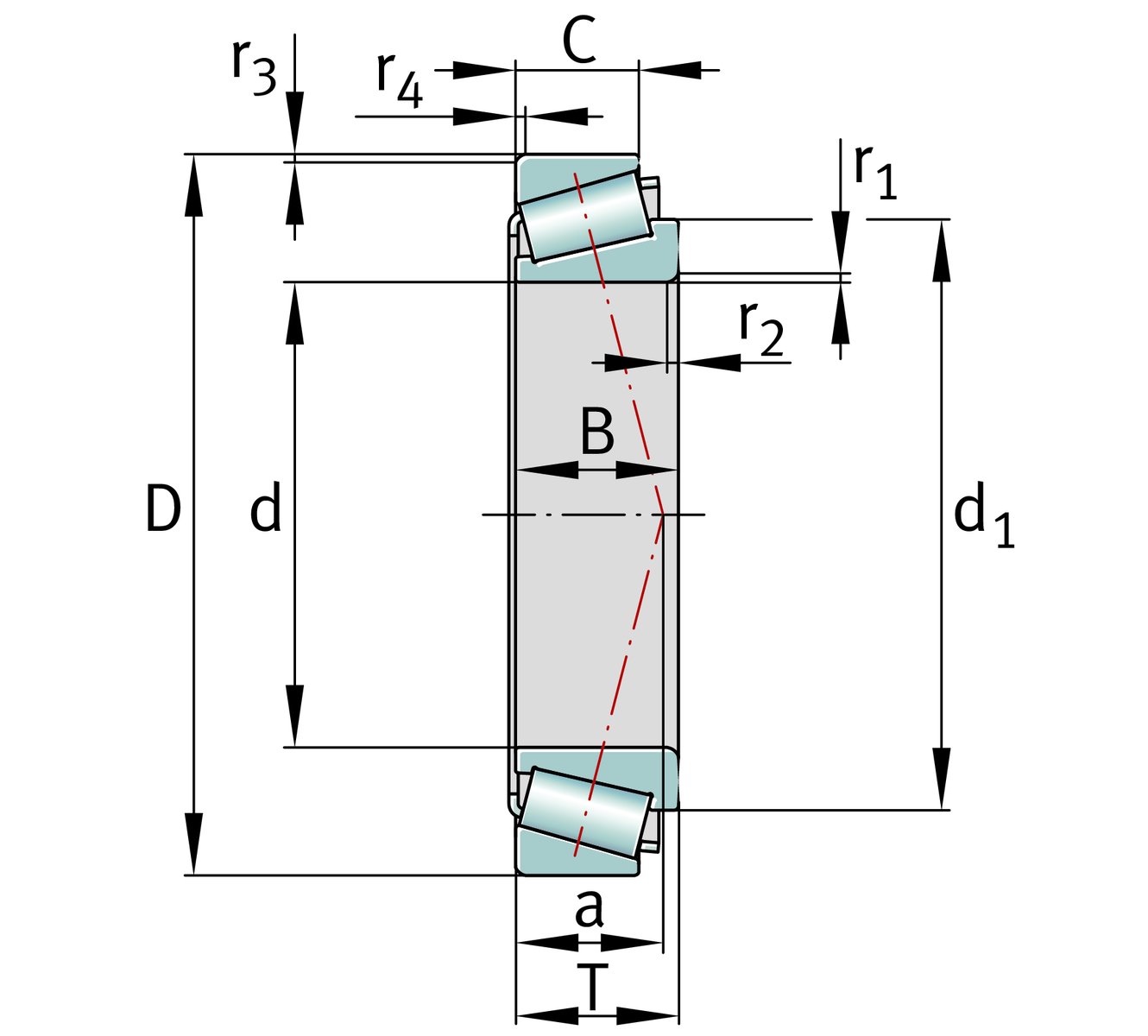

- SD: 80[mm]
- D: 140[mm]
- T: 28.25[mm]
- B: 26.0[mm]
- C: 22.0[mm]
- R: 2.5[mm]
- R1: 2.0[mm]
- ORDER: 30216U
- CR: 177[kN]
- COR: 200[kN]
- CU: 23.7[kN]
- LSG: 2 500[min^-1]
- LSO: 3 400[min^-1]
- ISO: 3EB[mm]
- A: 27.5[mm]
- MASS: 1.72[kg]
- 4T-: 4T圆锥滚子轴承
4T-30216
