NTN 6305NR
-
Optional specifications

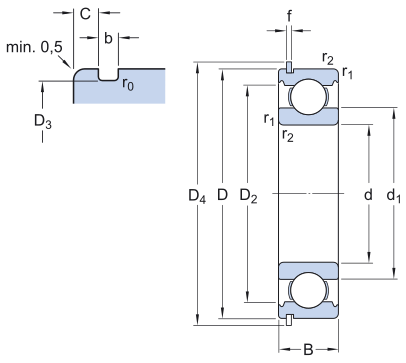

- LINA: 6305NR
- SD: 25mm
- D: 62mm
- B: 17mm
- R: 1.1mm
- ORDER: 6305NR
- CR: 23.5[kN]
- COR: 10.9[kN]
- CU: 0.855
- LSG: 12000[min^-1]
- LSO: 14000[min^-1]
- MASS: 0.23[kg]

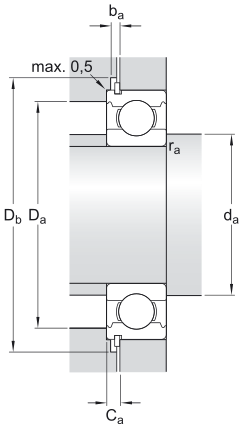

- D1: 59.61mm
- A: 3.28mm
- BA: 1.90mm
- R0: 0.60mm
- D2: 67.7mm
- F: 1.70mm
- RNAS: 0.5
- NR: 外圈带止动槽和止动环
6305NR
