Hot INA PWKR62-2RS-XL
-
Optional specifications
- 您当前的产品型号: 您当前的产品型号
- 密封: 2RS 两侧接触式密封
- 修形外圈: Optimized INA-profile
- 油嘴: unmounted 2x
- 再润滑特性: and fit
- Assembling: Hexagon socket
- Mounting: Hexagon socket
- 主要尺寸和性能数据:
- D: 62mm
- d1: 24 mm
- B: 80mm
- Cr: w 35,500 N
- C0r: w 44,500 N
- Cur: w 6,000 N
- nD: G 2,200 r/min
- F0r: per 44,500 N
- Fr: per 28,500 N
- ≈m: 0.75 kg

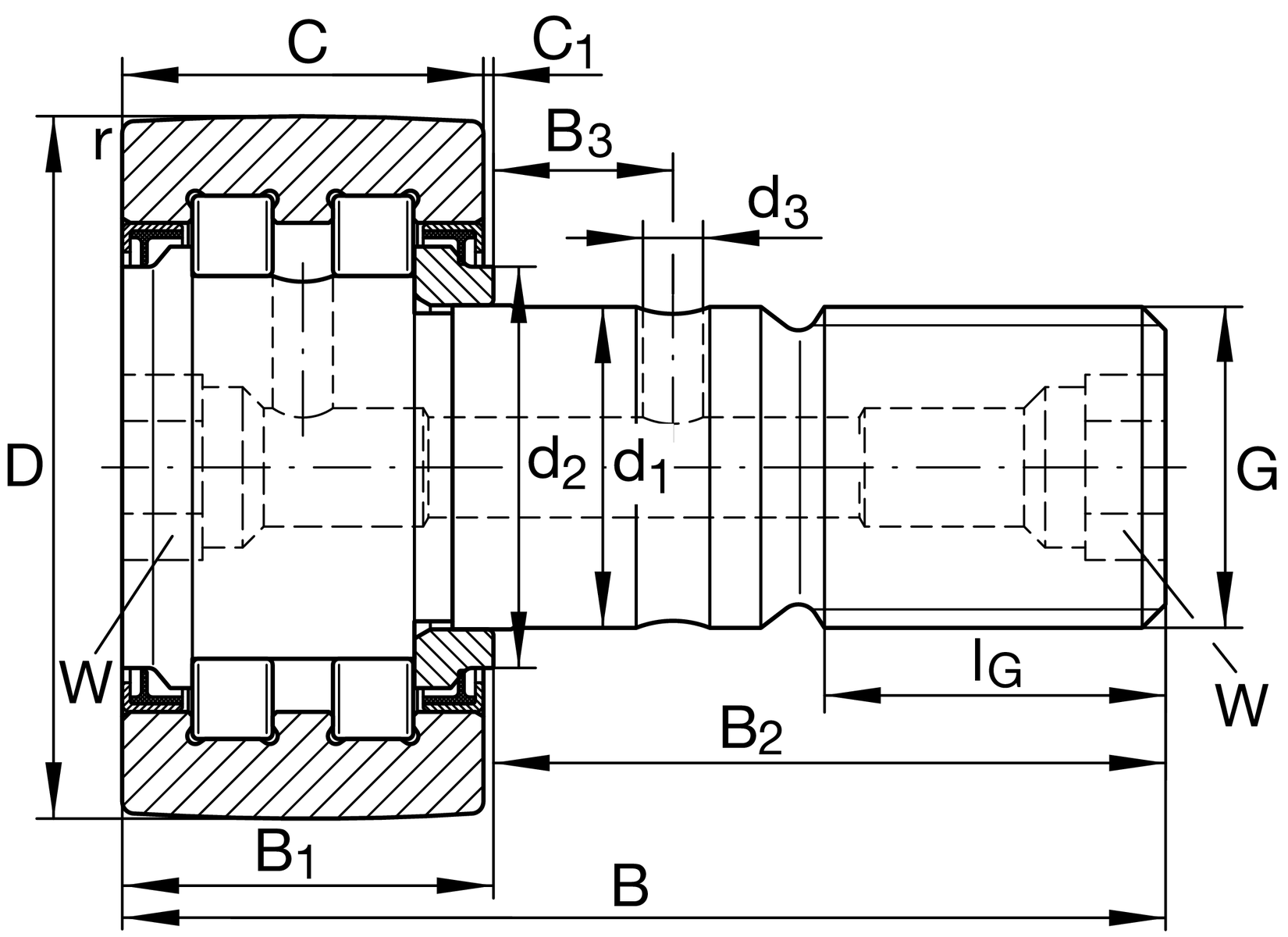

- 尺寸:
- B1: 30.6 mm
- B2: 49.5 mm
- B3: 11 mm
- C: 28 mm
- C1: 1.3 mm
- rmin: 1 mm
- d2: 38 mm
- d3: 4 mm
- G: M24X1,5
- IG: 25 mm
- W: 14 mm
- 附加信息:
- NIPA3X9,5:
- MA: 220 Nm
PWKR62-2RS-XL
