Promote INA E50-XL-KLL
-
Optional specifications
- 您当前的产品型号: 您当前的产品型号
- 密封: KLL KLL
- 主要尺寸和性能数据:
- d: 50mm
- D: 90mm
- B: 49.2mm
- B1: 62.8 mm
- Cr: 37,500 N
- C0r: 23,200 N
- Cur: 1,210 N
- ≈m: 1 kg

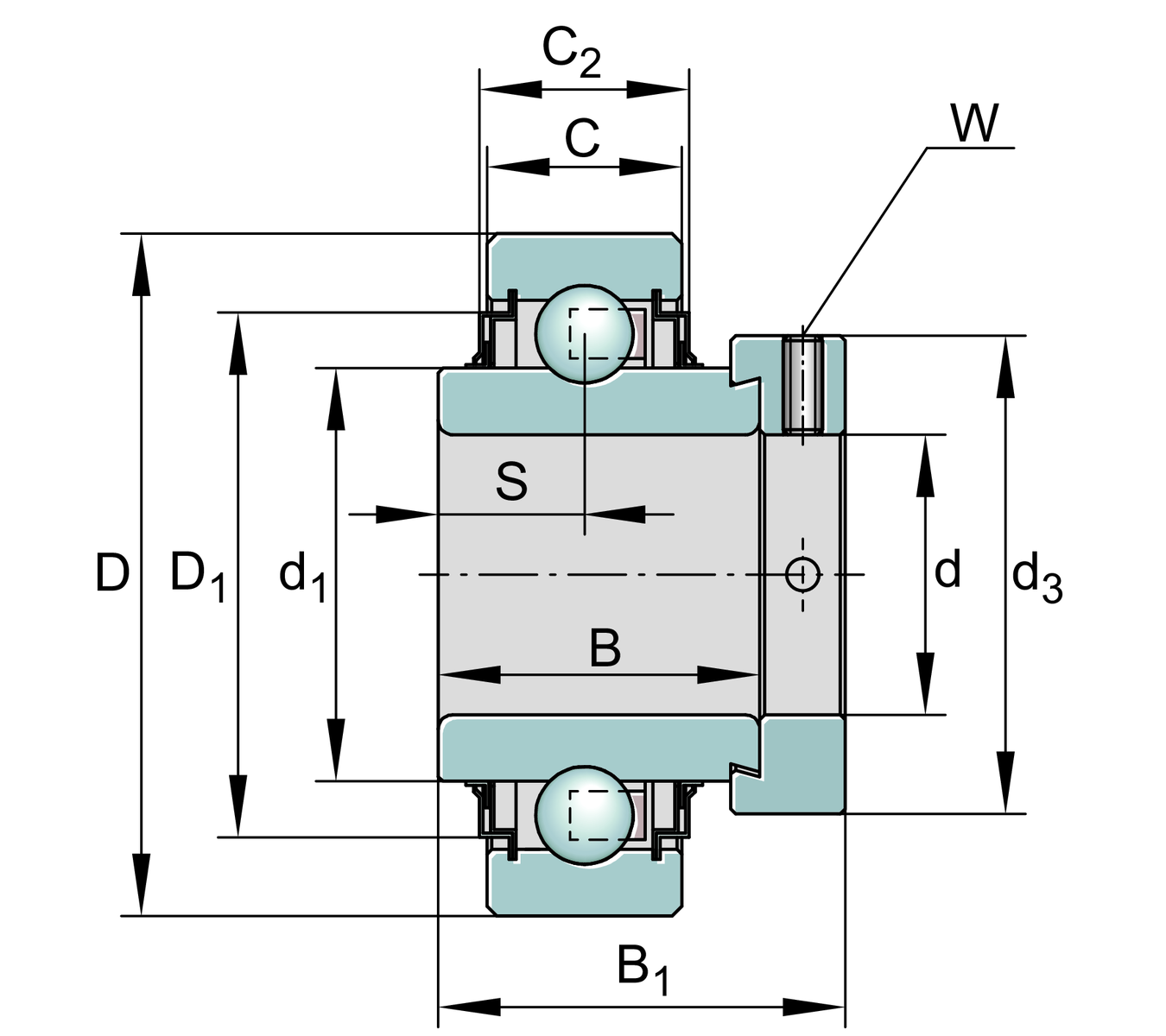

- 尺寸:
- C: 22 mm
- C2: 26.4 mm
- S: 24.6 mm
- d1: 62.8 mm
- D1: 77.3 mm
- d3: 69 mm
- W: 5 mm
- 计算因素:
- f0: 14.4
E50-XL-KLL
