Promote INA SL192320-TB-XL-BR
-
Optional specifications
- 主要尺寸和性能数据:
- d: 100mmBoreiameter
- D: 215mmOutside
- B: 73mm
- Cr: 790,000 N Basic dynamic load
- C0r: 850,000 N Basic static load
- Cur: 150,000 N Fatigue load
- nG: 2,420 r/min Limiting
- ner: 1,490 r/min Reference
- ≈m: 12.766 kg

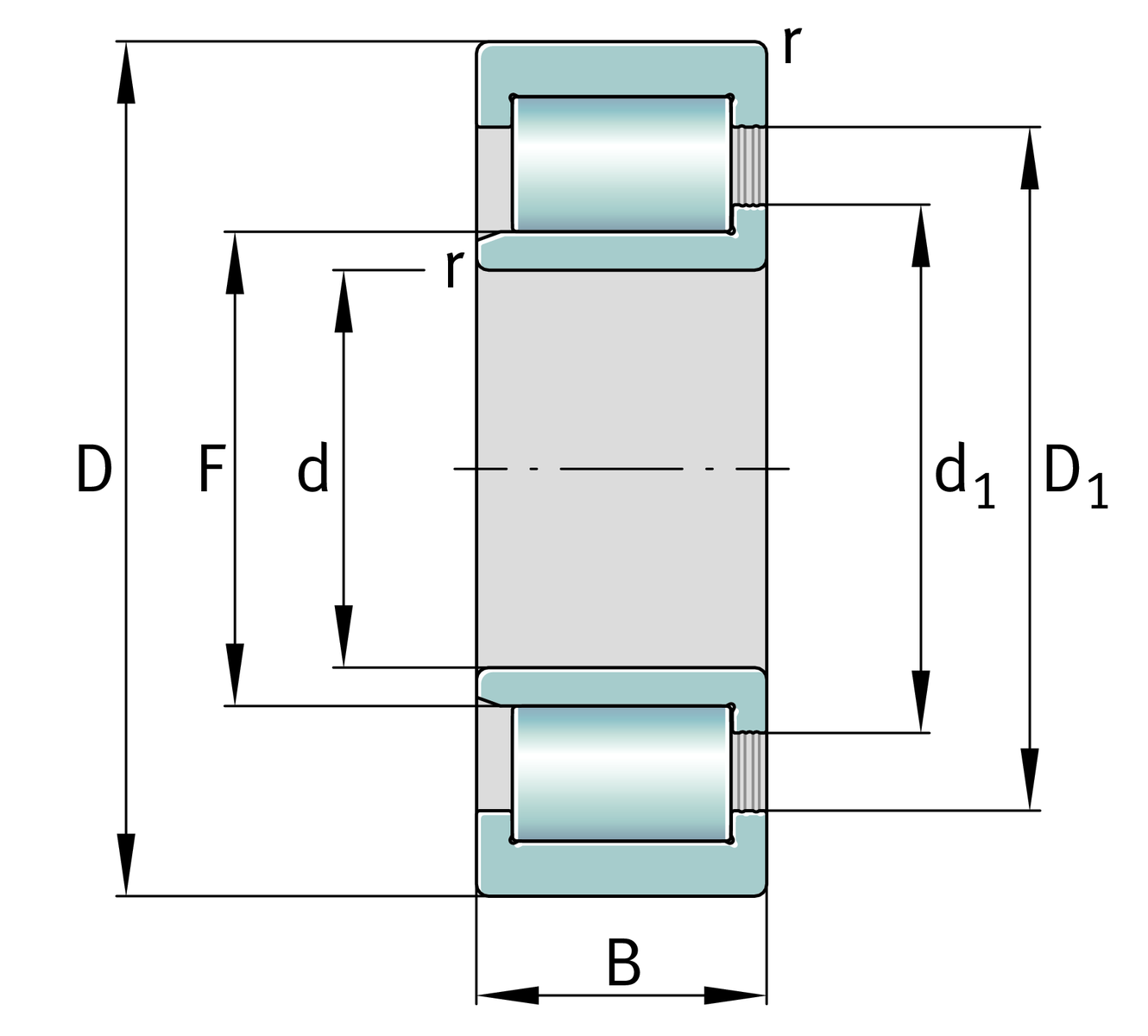

- 尺寸:
- D1: 172.8 mm Shoulder diameter outer
- Da: max 172.5 mm Maximum diameter of housing
- d1: 132.7 mm Shoulder diameter inner
- da: min 119 mm Minimum diameter shaft
- dc: min 132.5 mm Minimum shaft
- F: 119.3 mm Raceway diameter inner
- ra: max 3 mm Maximum fillet dius
- rmin: 3 mm Minimum chamfer
- s: 4 mm Axial diplacement
- 温度范围:
- Tmin: -30°C
- Tmax: 120°C
SL192320-TB-XL-BR
